RD3200EX เครื่องสแกนบาร์โค้ดในตัว

Performance

Product Name

qr code reader module

Image Sensor

640 * 480 CMOS

Light Source

White LED

Symbologies

2D

PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One

1D

EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K

Resolution

≥5mil

Typical Depth of Field

EAN-13

 25mm-110mm (13mil)

PDF 417

35mm-50mm (6.7mil)

Data Matrix

15mm-40mm (10mil)

QR Code

0mm-90mm (15mil)

Symbol Contrast

30%

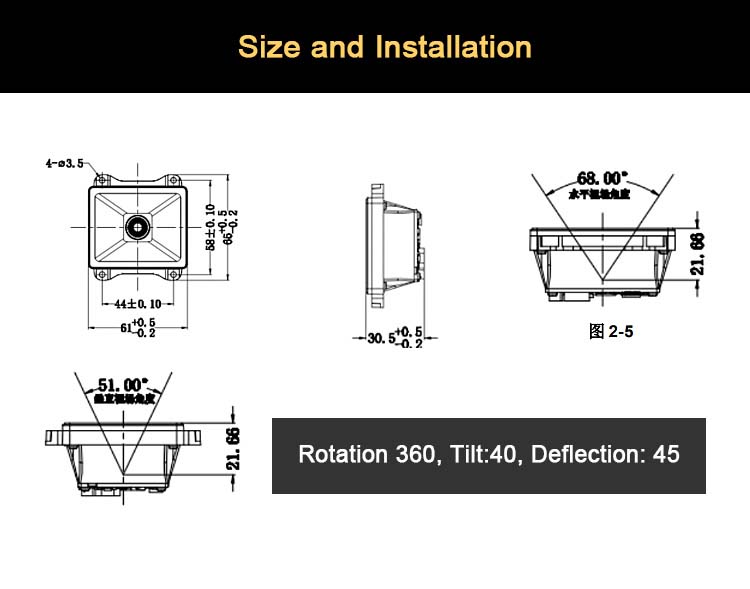

Scan Angle**

Roll: 360°, Pitch: ±40°, Skew: ±45°

Field of View

Horizontal 68°, Vertical 51°, Diagonal 84.8°

Mechanical

Interface

TTL-232, USB

Electrical

Power Adapter

DC5V power adapter to power the NLS-EVK with RS-232 cable.

Current 3.3VDC

Operating

335mA (typical),  479mA (max.)

Idle

93mA

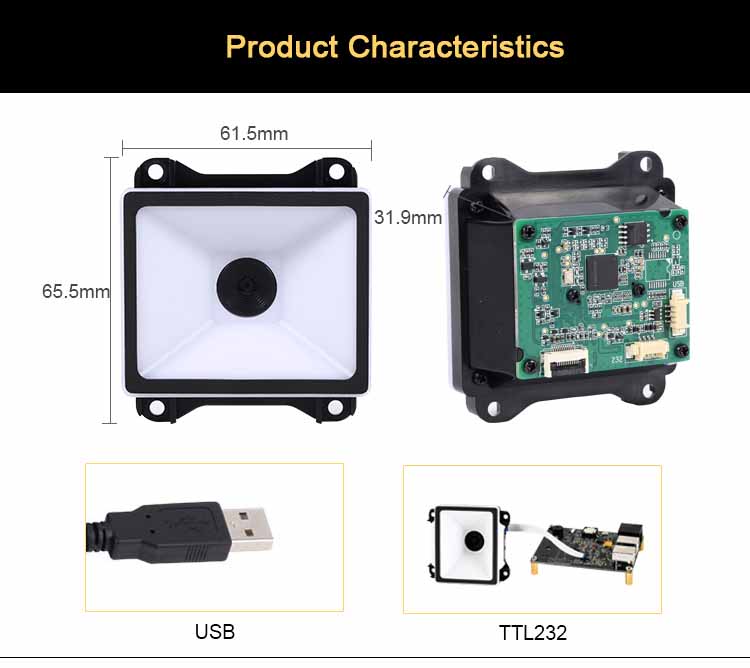

Dimensions

61.5(W)×65.5(D)×31.9(H)mm (max.)

Weight

33g

Environmental

Operating Temperature

-40℃~+60℃

Storage Temperature

-40℃~+75℃

Humidity

5%~95% (non-condensing)

Ambient Light

0~100000lux (natural light)

Accessories

Cable

USB             Used to connect the NLS-EVK to a host device.
